CASE STUDY:
Pallet Storage Solution
A builders merchant along the South Coast contacted our team as they were seeking a long term solution for storing pallets in their yard.
They planned to replace a number of their existing factory units, which were becoming obsolete, with a semi-permanent warehouse.
This sought after solution would allow them to move quickly and remain on the current site. Furthermore, the demountable, adjustable and relocatable characteristics of our structures ensured the client had a future proof solution should their needs change.
Site Visit
Having visited the site, we discovered that its position would be in close proximity to neighbouring boundaries.
We took necessary measures to fully comply with Building Control, allowing them to create the space they needed.
A sloped site also meant that an enhanced ground seal would be required to combat an uneven concrete surface.
Design and Manufacture
The client stores a high volume of materials that require protecting from adverse weather conditions, therefore both scale and specification mattered.
We manufactured components for a 15m long by 35m wide frame, designed on a 6m leg to achieve the required clearance for forklifts internally.
Within a few weeks, the structure was ready for delivery to site.

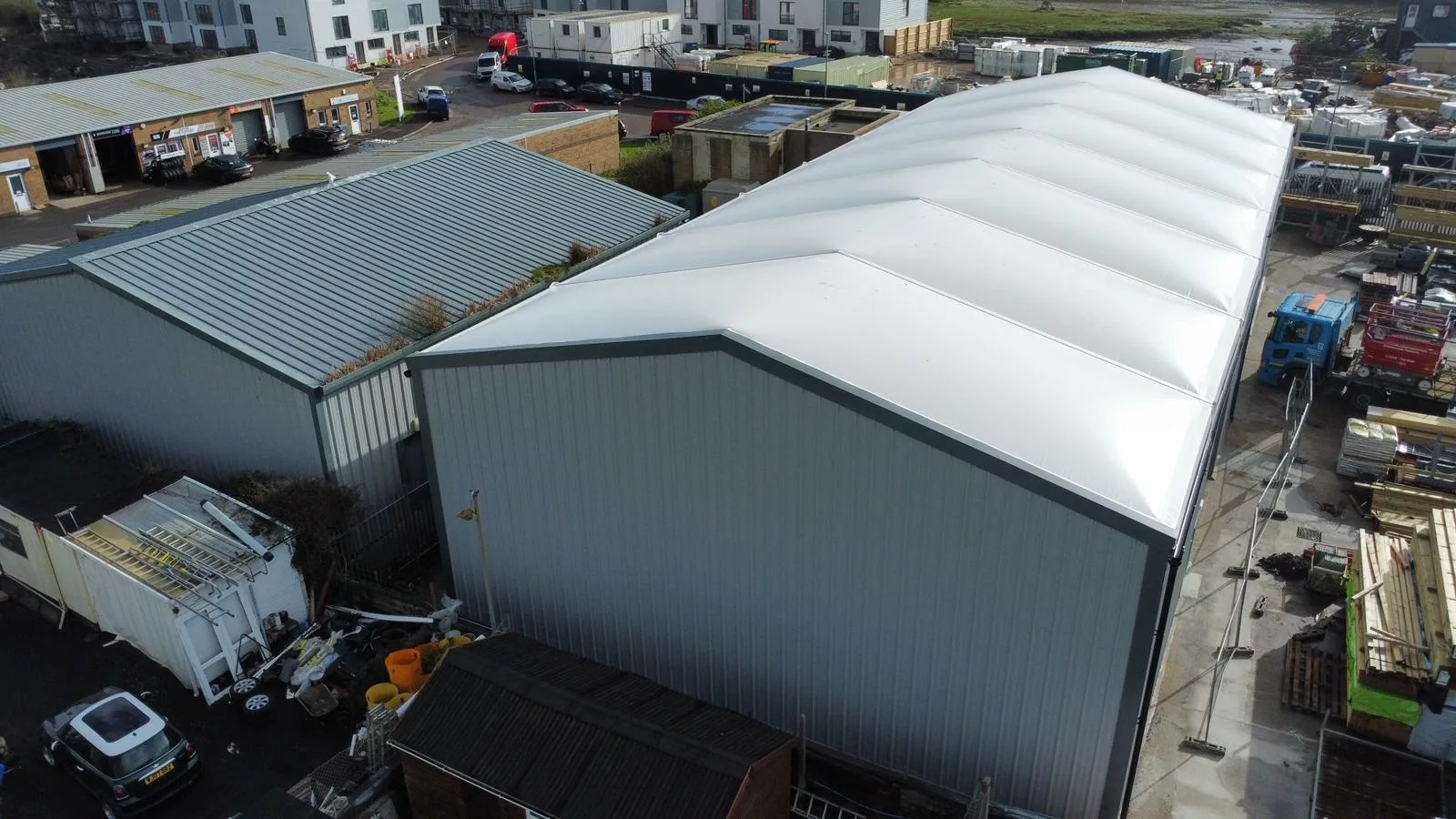

Build
Our dedicated build team erected the structure with minimal disruption.
The warehouse has been fitted with insulated wall panels and a thermo insulated roof for effective climate-control.

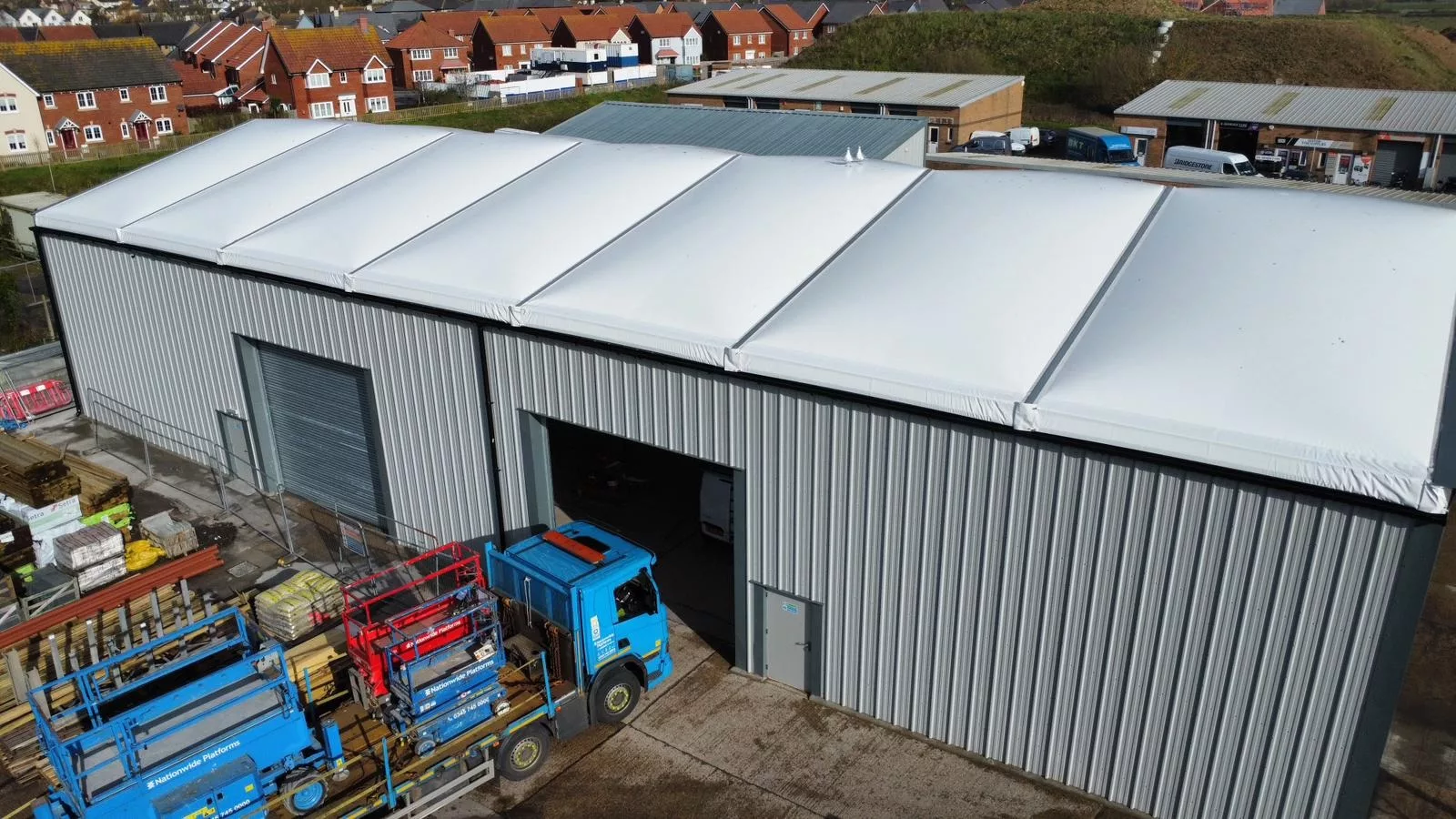

The building is equipped with a set of roller shutter doors to enable safe passage of plant while entering and exiting the warehouse.
In addition, we have installed three individual MOE doors for convenient pedestrian movement.
Within a fortnight the building had been signed off, leaving the client with a contemporary warehouse that can remain in situ for many years.
FAQs
What is the difference between a thermo insulated roof and a single skin steel roof?
A thermo insulated roof uses a large piece of PVC that is then inflated with a small pump to allow for insulation. Single skin steel incorporates individual panels of ‘tin’, if you wish for this to be insulated then sandwich panelling can be fitted inside two pieces on ‘tin’.
Do thermo insulated roofs retain the heat in the building?
They do! The roofs are built to stop condensation inside of the structure.
What are the benefits of thermo insulated roofs?
They are a cost-effective option for an insulated solution and require very little time to install.
What does it mean if a building is semi-permanent?
The building passes planning and building control but is taken down after a period of time. A semi-permanent building can be up for an extended period of time and relocated or taken down at request.
